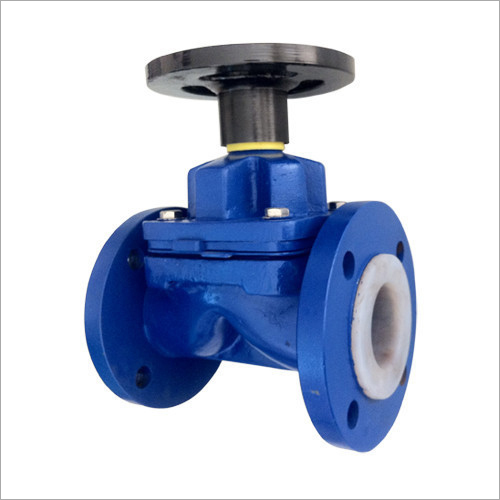

PTFE Lined Diaphragm Valve

PTFE Lined Diaphragm Valve
PTFE Lined Diaphragm Valve
Send Inquiry
Product Code : 09
Price And Quantity
  • Minimum Order Quantity
  • 10-15
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 2660 Onwards INR
Product Specifications
  • Size
  • All size Available
  • Product Type
  • Valve
  • Application
  • Industrial
Product Description

Other Details

  • Material :Polytetrafluoroethylene
  • Surface Treatment :Painted
  • Warranty : 1 Year
  • Features : Long Life,Low maintenance
  • Export Market:All Gulf Countries
  • Delivery time depend on order Location

Technical Specifications

MATERIAL

TEMPERATURE RANGE, ℉ ( ℃ )

Perfluoro (Alkoxyalkane) Copolymer (PFA)

-20 to 500 (-29 to 260)

Perfluoro (Ethylene - Propylene)) Copolymer (FEP)

-20 to 300 (-29 to 149)

Poly (Vinylidene Fluride) (PVDF)

0 to 275 (-18 to 135)

Poly (Vinylidene Fluride) Copolymer (PVDF)

-20 to 500 (-29 to 135)

Polytetrafluoroethylene (PTFE)

-20 to 500 (-29 to 260)

Propylene and Polypropylene (PP)

0 to 225 (-18 to 107)

Dimensions Table

IZE (NB)

L+-3

OD+-1

T+3-0

H APPROX

PCD+-1.6

NO.OF HOLES

HOLE DIA.

R/F DIA.

15 NB

108

89

13

105

60

4

16

32

20 NB

133

98

15

142

70

4

16

43

25 NB

133

108

16

142

79

4

16

51

40 NB

166

127

19

160

4

93

16

73

50 NB

196

152

21

200

121

4

19

92

65 NB

222

180

23

250

140

4

19

105

80 NB

260

191

25

240

152

4

19

127

100 NB

311

229

25

250

291

8

19

157

150 NB

412

280

28

250

241

8

22

216

200 NB

480

343

28

280

298.4

8

22

270

Trade Information
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • AS per Requirement Per Month
  • Delivery Time
  • As per Location Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Domestic Market
  • All India
