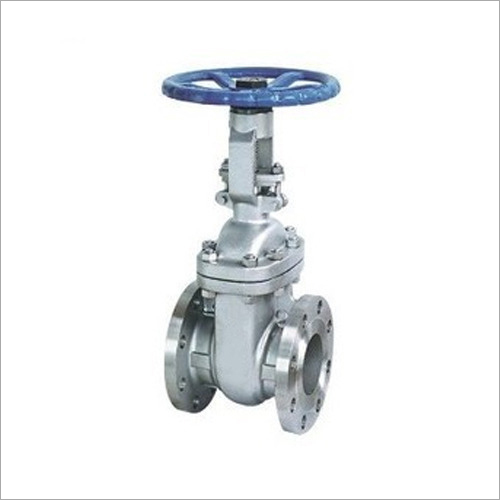

Flange End Gate Valve

Flange End Gate Valve
Flange End Gate Valve
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 10-15 Piece/Pieces
  • Price
  • 995 Onwards INR
Product Specifications
  • Application
  • Industrial
  • Product Type
  • Valve
  • Size
  • All size Available
Product Description

Other Details

  • Material :Metal
  • Surface Treatment :Polished
  • Warranty : 1 Year
  • Features : Long Life,Low maintenance
  • Export Market:All Gulf Countries
  • Delivery time depend on order Location

Product Range

Size Range

Class

1 1/2" - 36"

Class 150

End Connection

Flanged End Raised Face, Butt Weld End, Screwed End, RTJ...etc.

Operation

Hand Wheel , Gear Operator, Electrical Actuator

Product Standard

Design Standard

API 6D, API 600, ASME B 16.34, ASME B16.25

Testing Standard

API 598, BS 6755 I

Face To Face

ANSI B 16.10

End Connection

Flanged End - ANSI B 16.5, BS 10 Table, etc.
Butt Weld End – ASME B 16.25
Screwed End - ASME 1.20.1

Valve Operation

Operator

Size Range

Hand Wheel :

1 1/2" - 14"

Gear Operator :

16" and above

Material

Shell

WCB, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel

Trim

SS410, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel

Body Bonnet Joint

Standard body-bonnet joints of gate valves are machined as follows

PRESSURE CLASS

JOINT DESIGN

150

Flat Faced

300, 600

Male-and-Female

900 & over

Ring Type Joint





Trade Information
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • AS per Requirement Per Month
  • Delivery Time
  • As per Location Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Domestic Market
  • All India
